Rotary Evaporator package Heidolph Hei-VAP Silver 6

Description

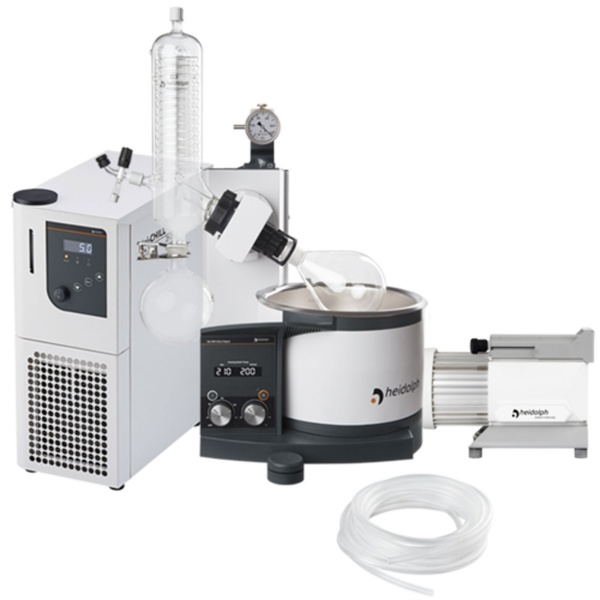

Heidolph Hei-VAP Silver 6 Rotary Evaporator package:
Hei-VAP Value Digital with hand lift and vertical glassware set G3
Vacuum pump Rotavac Valve Tec
Manual vacuum controller
Chiller Hei-CHILL 250
Tube set
TECHNICAL DATA
Model Hei-VAP Value
Rotation speed indicator Scale
Permissible ambient conditions
5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity
Protection class DIN EN 60529 IP 20
Lift Handlift
Height adjustment speed Manual
Height adjustment 155 mm
Drive Brushless DC motor with electronic speed control
Heating capacity 1,300 W
Temperature range heating bath 20 – 210 °C
Temperature accuracy bath ±1 °C
Overheat protection bath Cut-off at 5 °C over set temperature via separate PT 1000
Bath temperature setting Scale
Heating bath temperature control Electronic / digital
Secondary overtemperature cut off 250 °C
Material heating bath Stainless steel AISI 316L
Diameter heating bath 255 mm
Volume heating bath 4.5 l
Display vapor temperature –
Required accessories for display vapor temperature –
Integrated vacuum controller –
Timer –
Vacuum program SETpressure –
Vacuum program AUTOeasy –
Vacuum program AUTOaccurate requires AUTOaccurate sensor –
Remote control function Lift –
Remote control function – Start rotation 1
Remote control function – Start vacuum –
Remote control function – Start heating bath 1
Programmable ramps –
Supply Power 1,400 W
Weight without glassware assembly 16 kg
Dimensions with glassware set G3 (L x W x H) 477 x max. 739 x 845 mm
Dimensions with glassware set G3 XL (L x W x H) 477 x max. 739 x 920 mm
Condensing surface 1,400 cm2
Condensing surface XL condenser 2,200 cm2
Max. size evaporating flask 5 l
Display –
Rotation speed range 10 – 280 rpm
