Description
These tube furnaces can be used for horizontal (RSH) operation. The hinged design makes it easy to change the working tube. Thus, different working tubes (e.g. working tubes made of different materials) can be changed comfortably.
Using a wide range of accessories, these professional tube furnaces can be optimally designed for your process. By upgrading with various gas supply packages, it is possible to work under protective gas atmosphere, vacuum or flammable protective or reaction gases. In addition to the convenient standard controllers, modern PLC controllers can also be used to control the process.
Tmax 1300 °C
Housing made of textured stainless steel sheets
Thermocouple type S

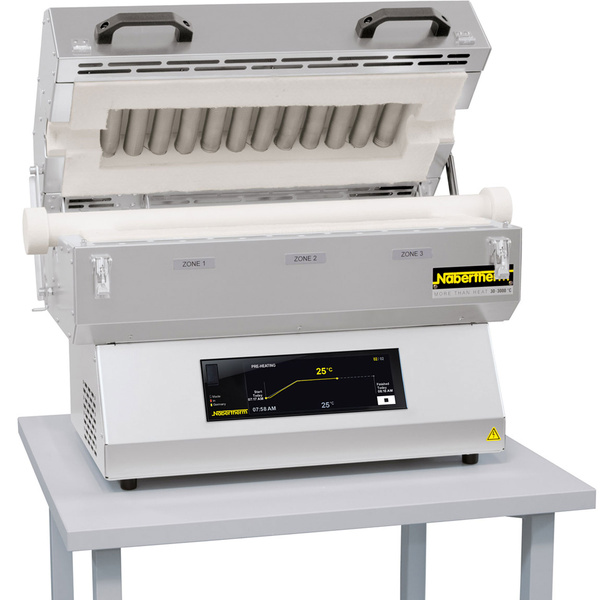

Hinged design for easy insertion of the working tube
Working tube made of material C 530 for operation in air included in the scope of delivery
Heating elements freely radiating on support tubes
Switchgear with controller integrated in the furnace
Standard working tube
NTLog Basic for Nabertherm controller: recording of process data with USB stick
Heated length: 250 mm
Width outside (oven): 420 mm
Height outside (oven): 510 mm
Constant zone: 80 mm
Power (oven): 1,9 kW
Stove appliance type: tube furnace
Oven temperature max.: 1300°C
Pipe diameter (outside): 50 mm
Pipe length: 650 mm
Depth outside (oven): 375 mm
Product weight: 25,00 Kg
